The CSTAR CSGL-T750 Compact Track Loader has a 410 kg rated load, a 0.15 m³ bucket and a 1,826 mm maximum dumping height.
Its working range extends to a 2,230 mm maximum loading height and 2,880 mm maximum operating height, making working height one of the key figures to compare on this model.
CSGL-T750 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-T750 |
| Performance | Operating Weight | 1,635 kg |
| Performance | Bucket Capacity | 0.15 m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 5.5 kN |
| Performance | Rated Load | 410 kg |
| Performance | Maximum Load | 525 kg |
| Performance | Travel Speed | 0–5 km/h |
| Performance | Vehicle Width | 985 mm |

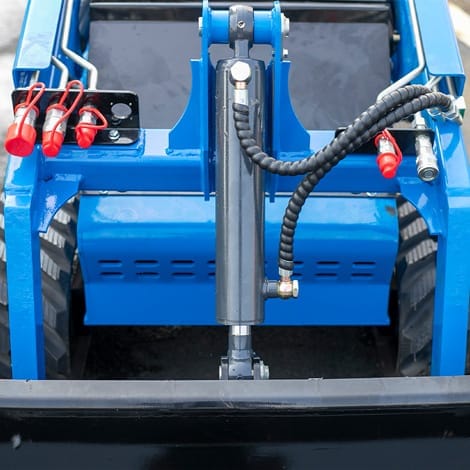

| Hydraulic System | Rated Pressure | 18 MPa |
| Bucket | Bucket Width | 1,270 mm |
| Working Range | Maximum Loading Height | 2,230 mm |
| Working Range | Maximum Dumping Height | 1,826 mm |
| Working Range | Maximum Operating Height | 2,880 mm |
| Working Range | Height to Bucket Pin | 2,340 mm |
| Working Range | Bucket Dump Angle at Maximum Height | 63° |
| Dimensions | Minimum Height | 1,550 mm |
| Chassis | Departure Angle | 18° |
| Chassis | Ground Clearance | 230 mm |
| Working Range | Dumping Distance | 373 mm |
| Track | Track Contact Length | 1,300 mm |
| Dimensions | Overall Dimensions | 2836 × 1270 × 1550 mm |
| Dimensions | Length Including Bucket | 2,836 mm |
| Dimensions | Length Excluding Bucket | 2,100 mm |
| Track | Track Model | 180 × 72 × 45 |
| Power System | Power Options | Electric / Laidong / Yanmar / Kubota |
| Power System | Model Options | Lithium Iron Phosphate / 385 / 3TNV80 / D1105 |
| Power System | Rated Power | 6 + 8 kW, 72V, 200Ah / 18.8 kW / 15.2 (17.8) kW / 17.1 kW |
| Diesel Engine | Cylinder | 3 |
| Diesel Engine | Intake Method | Naturally Aspirated |
| Diesel Engine | Emission Standard | EPA / ERUO5 |
| Diesel Engine | Fuel Tank Capacity | 30 L |
Check the Working Height, Not Just the Rated Load
The T750 reaches a 1,826 mm maximum dumping height and a
2,230 mm maximum loading height, with the machine reaching
2,880 mm at maximum operating height.
These dimensions should be compared directly with the trailer, bin or receiving point the loader will work with.
Is the CSGL-T750 only 985 mm wide?
The listed vehicle width is 985 mm, but the bucket width is
1,270 mm. Check the installed bucket or attachment width when measuring a gate or working passage.
Send the material, typical load, required loading or dumping height, site access dimensions and destination country.
