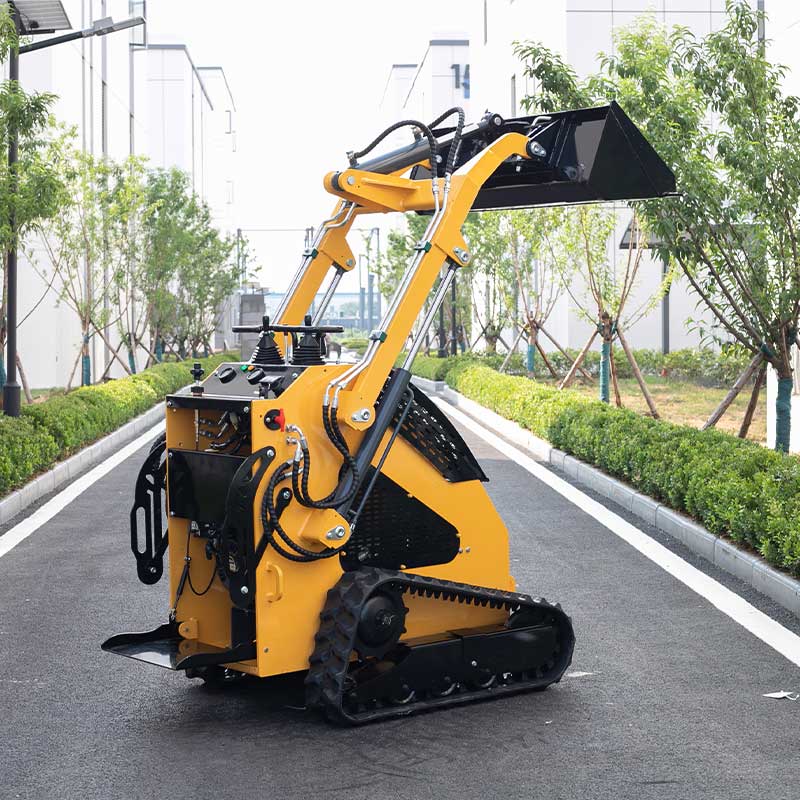

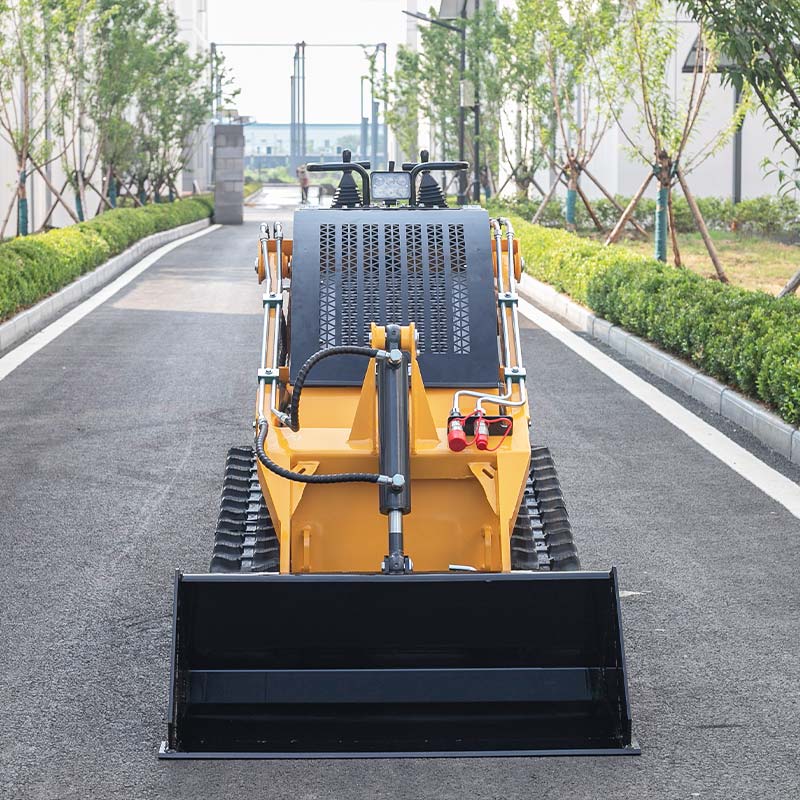

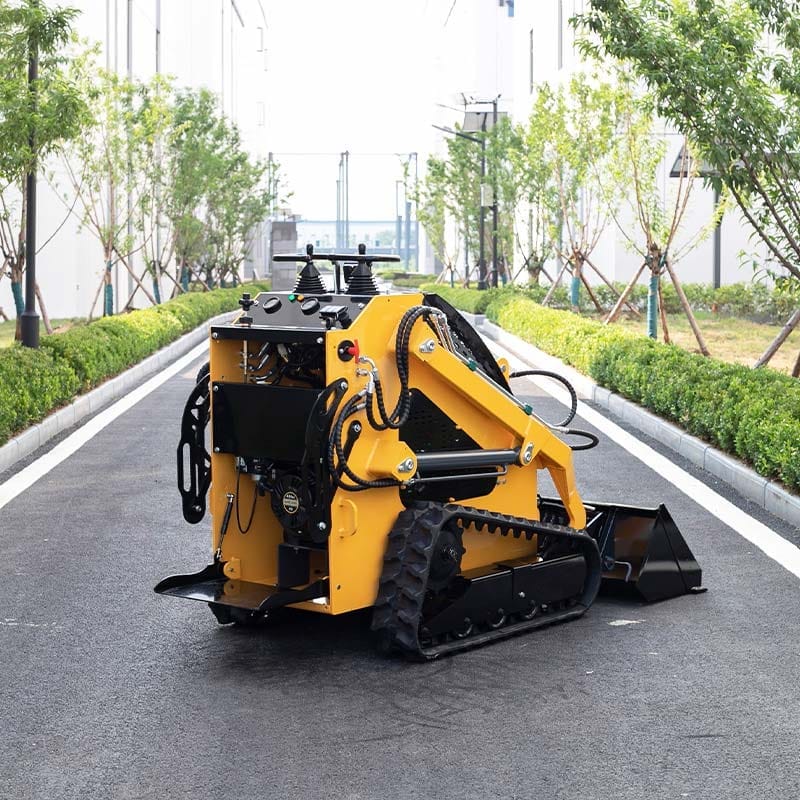

The CSTAR CSGL-T360 Mini Track Loader has a 200 kg rated load and a 0.1 m³ bucket.
Its compact chassis measures only 2,092 mm long with the bucket, with a listed 910 mm vehicle width and 1,300 mm minimum height.
CSGL-T360 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-T360 |
| Performance | Operating Weight | 941kg |
| Performance | Bucket Capacity | 0.1m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 3.5KN |
| Performance | Rated Load | 200kg |
| Performance | Maximum Load | 300kg |
| Performance | Travel Speed | 0-6km/h |
| Dimensions | Vehicle Width | 910mm |
| Hydraulic System | Rated Pressure | 16Mpa |
| Bucket | Bucket Width | 1050mm |
| Working Range | Max Loading Height | 1720mm |
| Working Range | Max Dumping Height | 1386mm |
| Working Range | Max Operating Height | 2400mm |
| Working Range | Height to Bucket Pin | 1857mm |
| Working Range | Max Height Bucket Dump Angle | 63° |
| Dimensions | Min Height | 1300mm |
| Chassis | Departure Angle | 22° |
| Chassis | Ground Clearance | 173mm |
| Working Range | Dumping Distance | 250mm |
| Track | Track Contact Length | 900mm |
| Dimensions | Overall Dimensions | 2092*1050*1300mm |
| Dimensions | Length Including Bucket | 2092mm |
| Dimensions | Length Excluding Bucket | 1726mm |
| Track | Track Model | 180*72*35 |
| Power System | Brand | Lithium electricity/KOOP/Rato/B&S |
| Power System | Model | Lead-acid battery/192FH/R420D/XR13.5 |
| Power System | Rated Power | 6kw,72V,125ah/7.6(7)/7.9/9.92kw |
| Engine | Cylinder | 1 |
| Engine | Intake Method | Natural inhalation |
| Engine | Emission Standard | EPA/ERUO5 |
| Engine | Fuel Tank Capacity | 5L |
A Short 2,092 mm Tracked Footprint
The T360 is only 2,092 mm long with the bucket, with a listed vehicle width of 910 mm and machine height of 1,300 mm. Together, those dimensions define its compact footprint better than width alone.
Request a CSGL-T360 Quote
Send the available working space, material, typical load, surface conditions and destination country.
