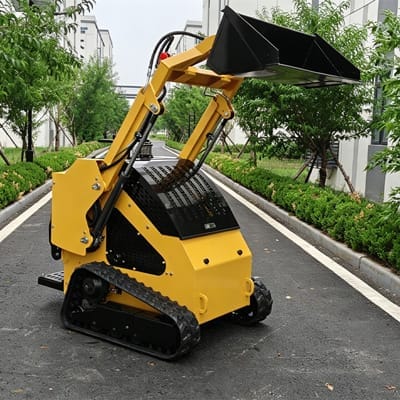

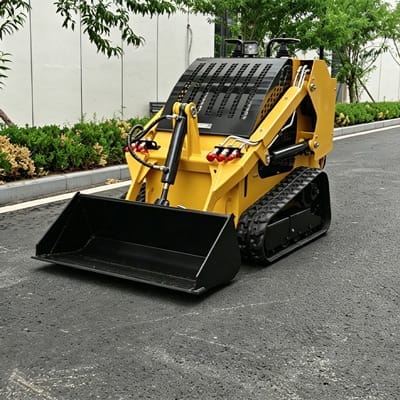

The CSTAR CSGL-T480 Mini Track Loader carries a 350 kg rated load while measuring only 2,169 mm long with the bucket installed.
The machine is also 1,300 mm high, giving the T480 a useful load-to-size combination for buyers comparing compact tracked loaders.
CSGL-T480 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-T480 |
| Performance | Operating Weight | 1,321 kg |
| Performance | Bucket Capacity | 0.1 m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 4.5 kN |
| Performance | Rated Load | 350 kg |
| Performance | Maximum Load | 450 kg |
| Performance | Travel Speed | 0–5 km/h |
| Performance | Vehicle Width | 1,040 mm |
| Hydraulic System | Rated Pressure | 16 MPa |
| Bucket | Bucket Width | 1,050 mm |
| Working Range | Maximum Loading Height | 1,720 mm |
| Working Range | Maximum Dumping Height | 1,401 mm |
| Working Range | Maximum Operating Height | 2,110 mm |
| Working Range | Height to Bucket Pin | 1,870 mm |
| Working Range | Bucket Dump Angle at Maximum Height | 63° |
| Dimensions | Minimum Height | 1,300 mm |
| Chassis | Departure Angle | 22° |
| Chassis | Ground Clearance | 157 mm |
| Working Range | Dumping Distance | 295 mm |
| Track | Track Contact Length | 900 mm |
| Dimensions | Overall Dimensions | 2169 × 1120 × 1300 mm |
| Dimensions | Length Including Bucket | 2,169 mm |
| Dimensions | Length Excluding Bucket | 1,850 mm |
| Track | Track Model | 180 × 72 × 35 |
| Engine | Engine Brand Options | Yanmar / Kubota |
| Engine | Engine Model Options | 3TNV80 / D1105 |
| Engine | Rated Power | 15.2 (17.8) / 17.1 kW |
| Engine | Cylinder | 3 |
| Engine | Intake Method | Naturally Aspirated |
| Engine | Emission Standard | EPA / ERUO5 |
| Engine | Fuel Tank Capacity | 13 L |
350 kg Rated Load in a 2,169 mm Machine
The T480 combines a 350 kg rated load with a
2,169 mm overall length including the bucket and a
1,300 mm machine height.
For buyers comparing small tracked loaders, those three figures describe the T480 more clearly than a generic “compact” label.
Request a CSGL-T480 Quote
Send the typical load, available working space, required dumping height, working surface and destination country.
