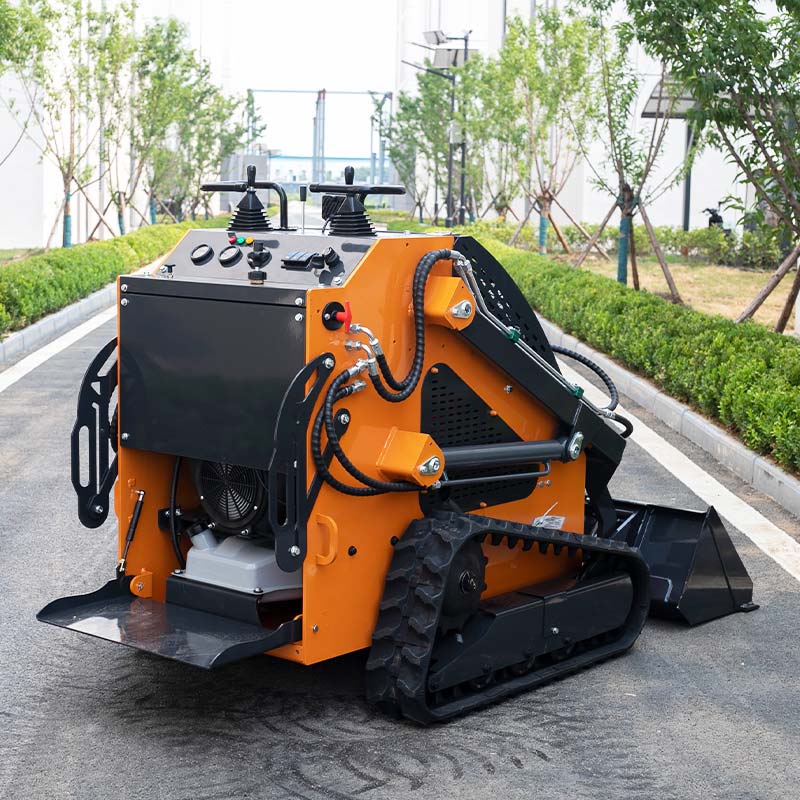

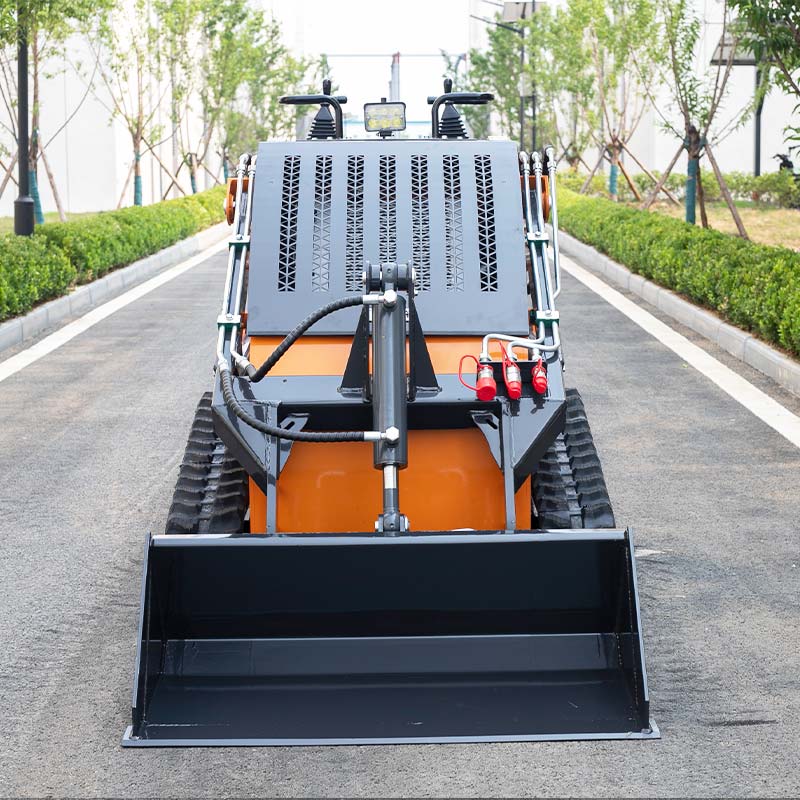

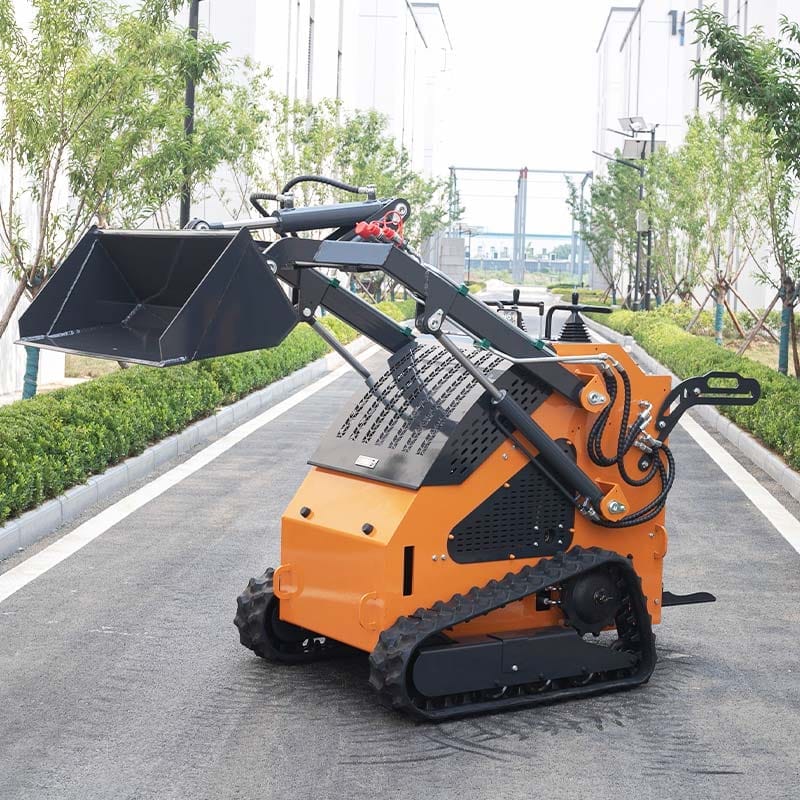

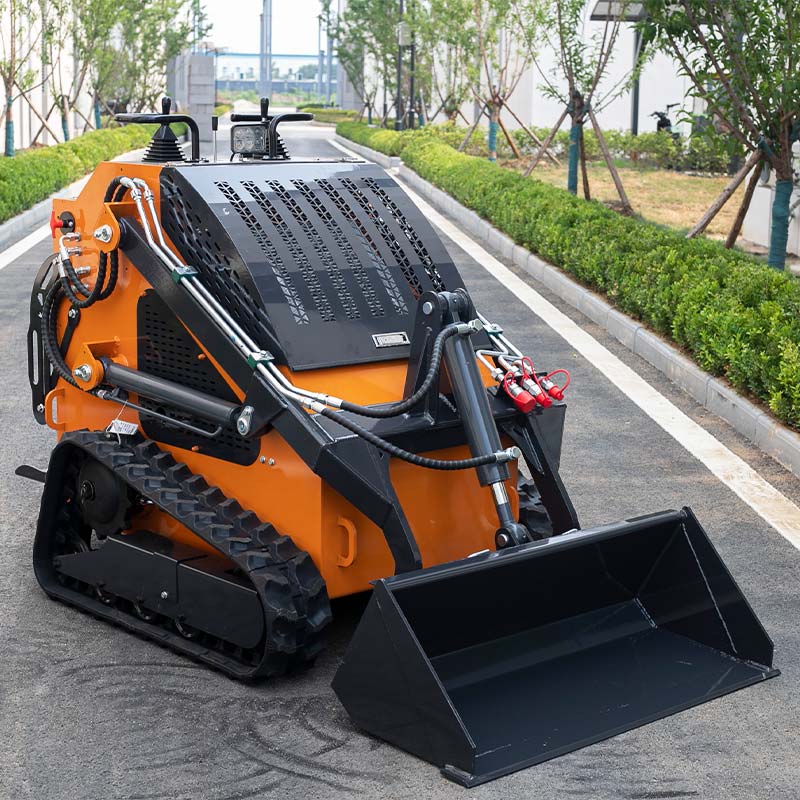

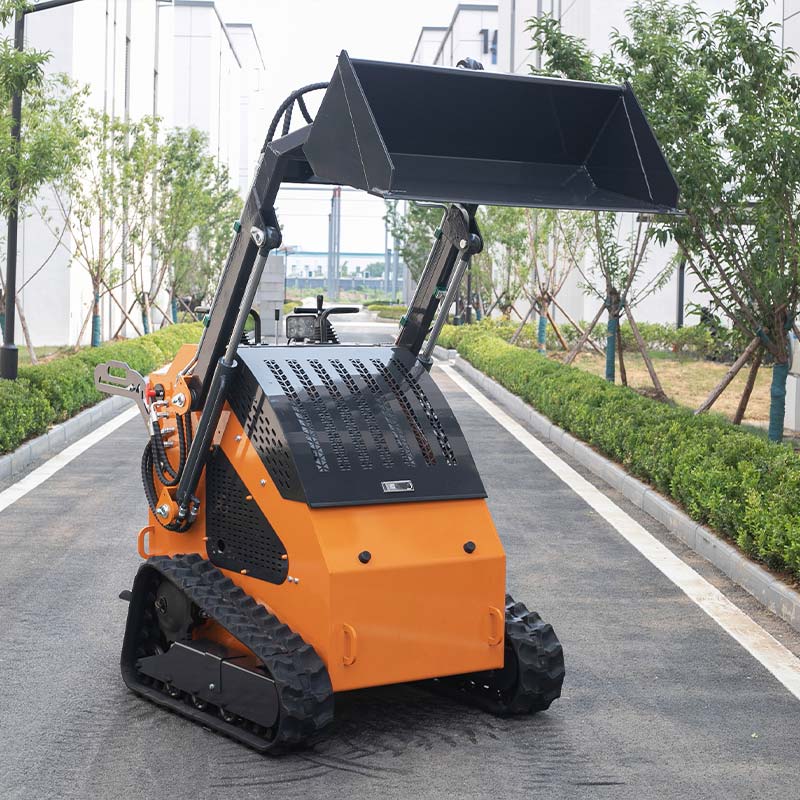

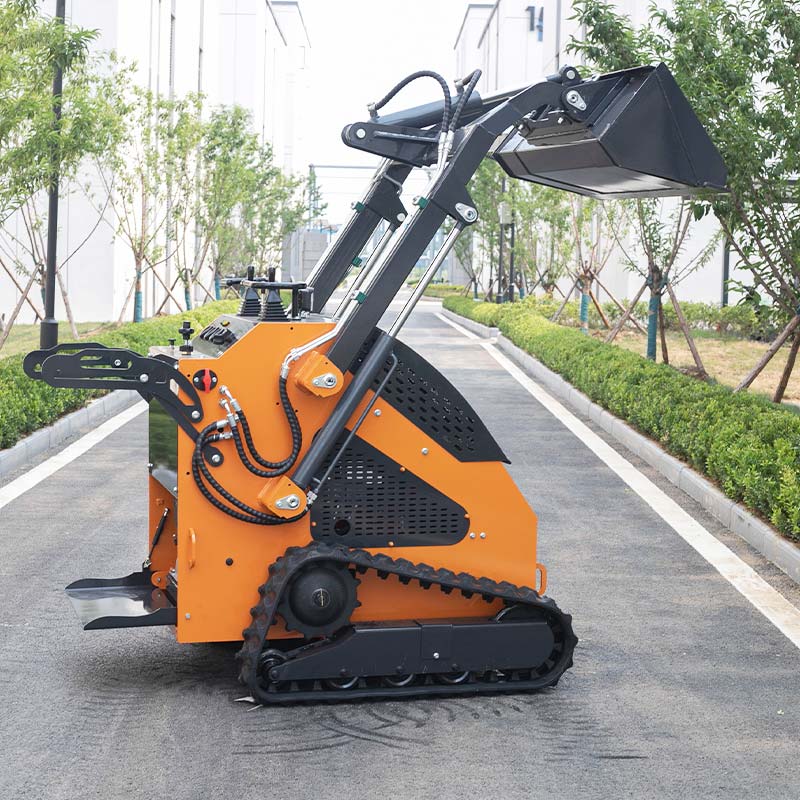

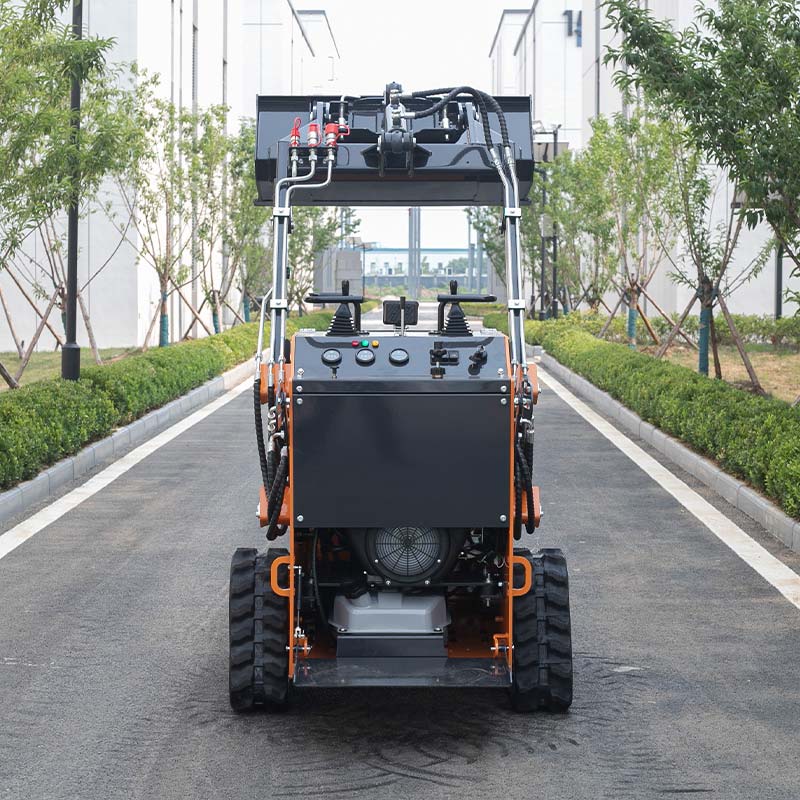

The CSTAR CSGL-T460 Mini Track Loader carries a 300 kg rated load with a 0.1 m³ bucket.
For this model, access dimensions need particular attention because the supplied specification contains three different width figures:1,040 mm vehicle width, 1,050 mm bucket width and 1,120 mm width in the overall dimensions.
CSGL-T460 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model | CSGL-T460 |
| Performance | Operating Weight | 1120kg |
| Performance | Bucket Capacity | 0.1m³ |
| Performance | Climbing Ability | 25° |
| Performance | Maximum Breakout Force | 4.5KN |
| Performance | Rated Load | 300kg |
| Performance | Maximum Load | 400kg |
| Performance | Travel Speed | 0-5km/h |
| Dimensions | Vehicle Width | 1040mm |
| Hydraulic System | Rated Pressure | 16Mpa |
| Bucket | Bucket Width | 1050mm |
| Working Range | Max Loading Height | 1720mm |
| Working Range | Max Dumping Height | 1401mm |
| Working Range | Max Operating Height | 2110mm |
| Working Range | Height to Bucket Pin | 1870mm |
| Working Range | Max Height Bucket Dump Angle | 63° |
| Dimensions | Min Height | 1300mm |
| Chassis | Departure Angle | 22° |
| Chassis | Ground Clearance | 157mm |
| Working Range | Dumping Distance | 295mm |
| Track | Track Contact Length | 900mm |
| Dimensions | Overall Dimensions | 2169*1120*1300mm |
| Dimensions | Length Including Bucket | 2169mm |
| Dimensions | Length Excluding Bucket | 1850mm |
| Track | Track Model | 180*72*35 |
| Power System | Brand | Lithium electricity/KOOP/Rato/B&S |
| Power System | Model | Lithium iron phosphate/292f/R740/Vanguard23 |
| Power System | Rated Power | 8kw,72V,200ah/15/16.8/17kw |
| Engine | Cylinder | 2 |
| Engine | Intake Method | Natural inhalation |
| Engine | Emission Standard | EPA/ERUO5 |
| Engine | Fuel Tank Capacity | 10L |
Three Width Figures Need to Be Checked
The specification lists 1,040 mm vehicle width,
1,050 mm bucket width and an overall dimension of
2169 × 1120 × 1300 mm.
For a restricted entrance, use 1,120 mm as the safer preliminary reference until the exact supplied configuration is confirmed.
Which width should I use when checking access for the CSGL-T460?
The source specification contains 1,040 mm, 1,050 mm and 1,120 mm width figures. For tight access, use 1,120 mm as the safer preliminary reference and confirm the final machine configuration before ordering.
Send the minimum access width, typical load, working surface and destination country.
