The CSHF-ND20 2 ton double-lift electric stacker combines stand-on powered travel, powered mast lifting, and adjustable support-leg clearance. It is rated for 2,000 kg at a 600 mm load center.
Three standard lift-height options—2,000, 2,500, and 3,000 mm—are listed on the same 850 mm-wide chassis. Platform-up length is 1,934 mm, while the platform-down operating length is 2,440 mm.
Three Mast Choices on One 850 mm Chassis

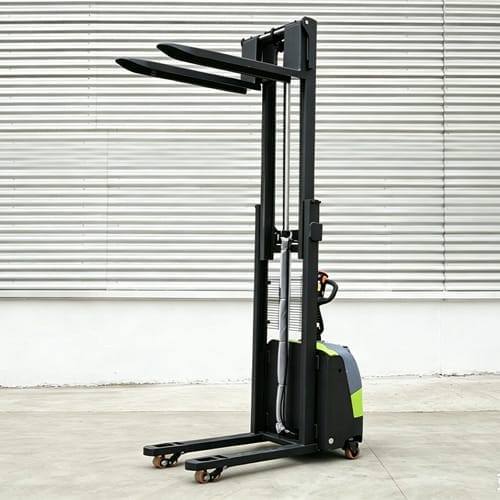

The 2,000, 2,500, and 3,000 mm lift options correspond to lowered mast heights of 1,560, 1,760, and 2,000 mm. This pairing lets buyers work backward from the highest required fork position and the lowest doorway or overhead restriction on the travel route.
Whichever mast is selected, the listed chassis remains 850 mm wide with a 1,500 mm turning radius. Raising the platform shortens the truck from 2,440 to 1,934 mm, which is relevant when parking or maneuvering outside the normal riding position.
The CSHF-ND20 is the 2,000 kg version and uses 2/3 kW drive and lifting motors. The CSHF-ND15 uses the same mast menu for loads within 1,500 kg, so mast choice can be settled first and capacity matched afterward.
CSHF-ND20 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-ND20 |
| Operating Type | Stand-on |
| Load Capacity | 2,000 kg |
| Load Center | 600 mm |

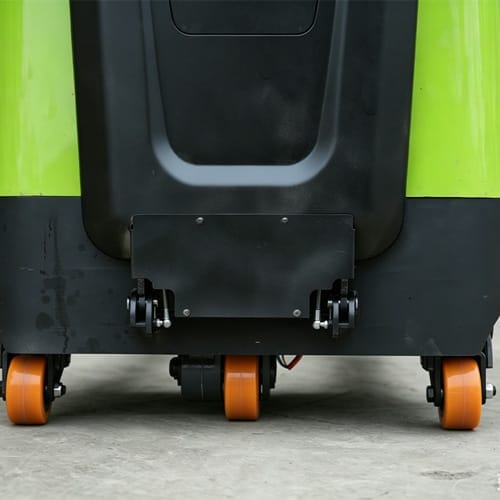

| Wheel Type | PU |
| Wheel Quantity — Drive/Balance/Load | 1 / 1 / 4 |
| Drive Wheel Size | Φ170 × 55 mm |
| Balance Wheel Size | Φ115 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Standard Lift Height Options | 2,000 / 2,500 / 3,000 mm |
| Mast Lowered Height by Lift Option | 1,560 / 1,760 / 2,000 mm |
| Minimum Fork Lowered Height | 90–160 mm |
| Outside Width Between Forks | 700 mm |
| Inside Width Between Forks | 320 mm |
| Fork Size — Length/Width/Thickness | 1,150 × 190 × 60 mm |
| Overall Length — Platform Down/Up | 2,440 / 1,934 mm |
| Overall Width | 850 mm |
| Minimum Turning Radius | 1,500 mm |
| Travel Speed — Laden/Unladen | 4.5 / 5 km/h |
| Lift Speed — Laden/Unladen | 80 / 95 mm/s |
| Lowering Speed — Laden/Unladen | 155 / 125 mm/s |
| Gradeability — Laden/Unladen | 8% / 10% |
| Drive/Lift Motor | 2 / 3 kW |
| Battery | 48V; capacity optional |
| Drive Mode | Electric |
| Motor Model | S120-35 |
| Brake | Electronic brake |
| Service Weight with Battery | 680 kg |
| Transmission | Mechanical transmission |
Request a Quote for the CSHF-ND20
Send us the load weight and center, pallet dimensions, required lift height, lowered-mast clearance, aisle width, threshold conditions, and operating cycle. We will confirm the mast and battery configuration.
