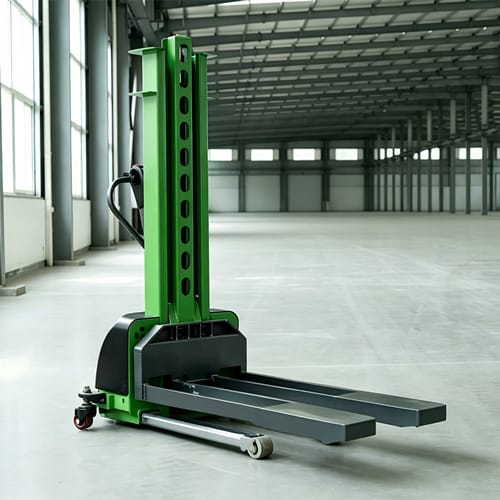

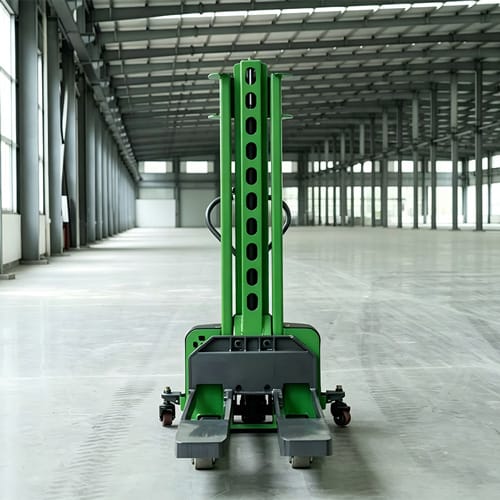

The CSHF-S15A 1.5 ton electric self-lifting stacker is a walkie-operated machine designed to travel with a delivery vehicle and assist with loading and unloading at destinations where fixed handling equipment may not be available. It is rated for 1,500 kg at a 400 mm load center.
The stacker measures 1,657 mm long and 802 mm wide, with a 1,250 mm fork length. Maximum fork-height options range from 800 mm to 1,600 mm, allowing the mast and total vehicle weight to be matched to the required loading height.
CSHF-S15A or CSHF-S10: Selecting a Self-Lifting Stacker
The CSHF-S15A adds 500 kg of capacity over the CSHF-S10 while using the same 48V 25Ah battery capacity and 0.8 kW drive motor rating. Their overall lengths are almost identical, but the S15A is 88 mm narrower.
The S10 lists a standard 1,300 mm lift height and a 420 kg service weight. The S15A offers eight fork-height options from 800 mm to 1,600 mm, with total weight ranging from 390 kg to 425 kg depending on the selected height. Fork arrangements also differ: 1,250 mm forks with 565/685 mm outside spacing for the S15A versus 1,200 mm forks with 620 mm outside width for the S10.
The S15A includes features intended for vehicle-loading work, including free lift, fork-tip guides, a movable middle wheel, anti-derailment protection, and mandatory speed limiting when the forks are raised. Select the final mast height and fork spacing against the delivery vehicle floor height and pallet specification.
CSHF-S15A Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-S15A |
| Power Type | Maintenance-free battery |
| Rated Load | 1,500 kg |
| Load Center Distance | 400 mm |
| Wheelbase | 924 mm |
| Front Wheel Distance (FR) | 405 / 525 mm |
| Rear Wheel Distance (RR) | 802 mm |
| Operation Type | Walkie |
| Front Wheel Size | 2-Φ80×70 / 2-Φ80×60 mm |
| Universal Wheel Size | Φ75×45 mm |
| Middle Wheel Size | Φ45×30 mm |
| Drive Wheel Size | Φ185×70 mm |
| Middle Wheel Position | 158 mm |
| Outrigger Length | 780 mm |
| Maximum Fork Height Options | 800 / 900 / 1,000 / 1,100 / 1,200 / 1,300 / 1,500 / 1,600 mm |
| External Distance Between Forks | 565 / 685 mm |
| Fork Length | 1,250 mm |
| Fork Thickness | 80 mm |
| Fork Width | 190 mm |
| Overall Length | 1,657 mm |
| Overall Width | 802 mm |
| Overall Height (Mast Closed) | 1,163 / 1,263 / 1,363 / 1,463 / 1,563 / 1,663 / 1,863 / 1,963 mm |
| Overall Height (At Maximum Fork Height) | 1,861 / 2,061 / 2,261 / 2,461 / 2,661 / 2,861 / 3,261 / 3,461 mm |
| Lifting Speed | 55 mm/s |
| Lowering Speed | 100 mm/s |
| Lift Motor Power | 2 kW |
| Drive Motor Power | 0.8 kW |
| Maximum Travel Speed — Turtle/Full Speed | 1 / 3.5 km/h |
| Gradeability — Full Load/No Load | 5% / 10% |
| Battery Voltage | 48V |
| Battery Capacity | 25Ah |
| Battery Weight | 25 kg |
| Total Weight Including Battery | 390 / 394 / 400 / 403 / 406 / 410 / 420 / 425 kg |
Request a Quote for the CSHF-S15A
Send us the load, pallet dimensions, delivery-vehicle floor height, required fork height, fork spacing, and loading method. We will help select the correct CSHF-S15A mast option and configuration.
