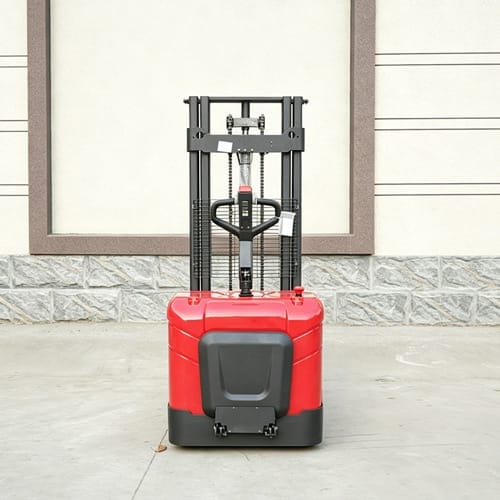

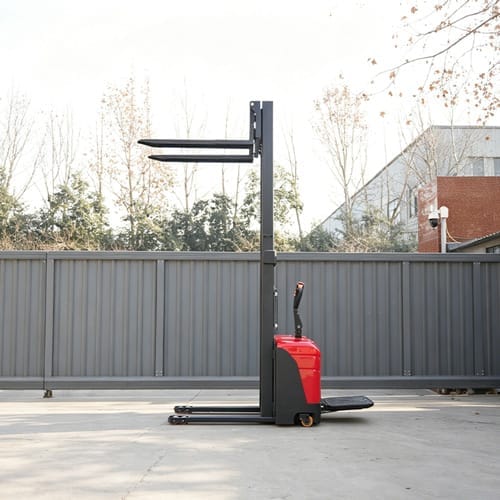

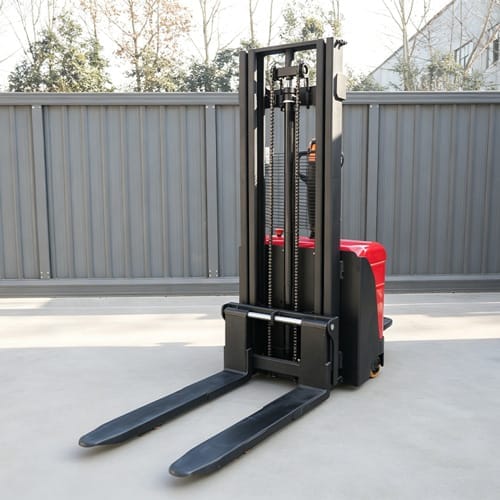

The CSHF-Z15 1.5 ton stand-on electric stacker provides powered travel and lifting for pallet transport and stacking. It is rated for 1,500 kg and uses an electronic brake.
The supplied configuration uses 1,150 × 180 × 50 mm forks with a 700 mm outer width and 340 mm inner width. Drive and lifting output are listed at 1.5 kW and 2.2 kW.
Why Choose the Lighter Z15 Platform
At approximately 550 kg, the CSHF-Z15 is 30 kg lighter than the Z20 version and uses a 1.5 kW drive motor with a 2.2 kW lifting pump. It is the capacity-matched stand-on option for repeat transport routes where every verified load remains within 1,500 kg.

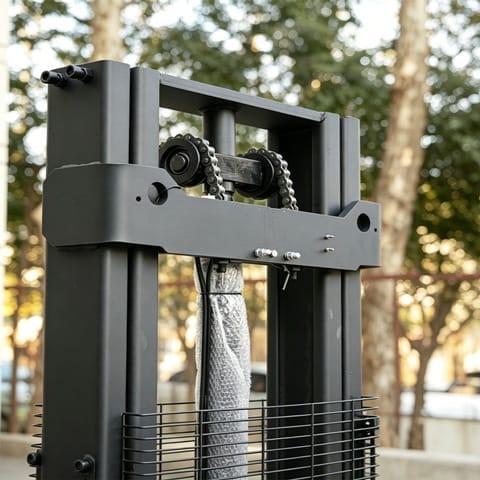

For loads closer to 2,000 kg and a fuller explanation of the Z-series operating layout, refer to the CSHF-Z20 product page. Lift height, mast clearance, and battery capacity are configured for the individual application.
CSHF-Z15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHF-Z15 |
| Load Capacity | 1,500 kg |
| Operation Type | Full-electric stand-on |
| Braking Method | Electronic brake |
| Vehicle Weight (Basic) | Approx. 550 kg |
| Fork Ground Clearance | 85 mm |
| Drive Motor Power | 48V / 1.5 kW |
| Lifting Pump Power | 48V / 2.2 kW |
| Fork Dimensions | 1,150 × 180 × 50 mm |
| Fork Outer Width | 700 mm |
| Fork Inner Width | 340 mm |
Request a Quote for the CSHF-Z15
Send us the load weight, pallet dimensions, required lifting height, aisle width, mast clearance, and operating cycle. We will confirm the complete mast and battery configuration.
