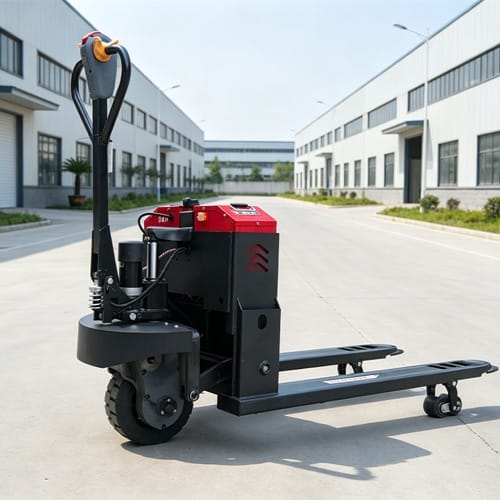

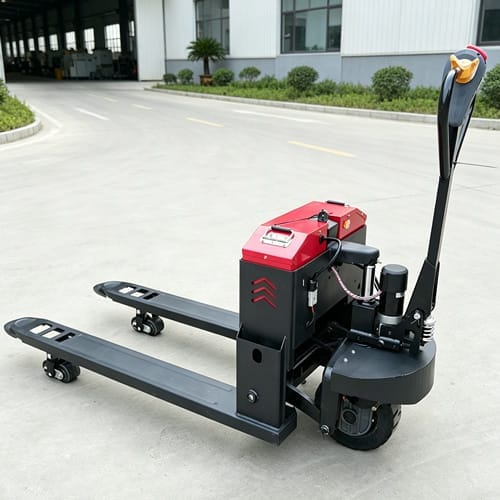

The CSTAR CSHP-Y30 3 ton full-electric pallet truck uses a 300 × 100 mm solid-rubber drive wheel for routes that extend beyond smooth warehouse floors. Powered travel and lifting are provided by 1.5 kW and 1.2 kW motors.
Its removable 48V battery arrangement allows on-truck or off-truck charging, separating the charging location from the working route.
CSHP-Y30 Specifications
| Parameter | Specification |
|---|---|
| Model | CSHP-Y30 |
| Rated Load Capacity | 3,000 kg |
| Load Center Distance | 500 mm |
| Operation Type | Full Electric |
| Drive Wheel Type | Rubber |
| Drive Wheel Size | Φ300 × 100 mm |

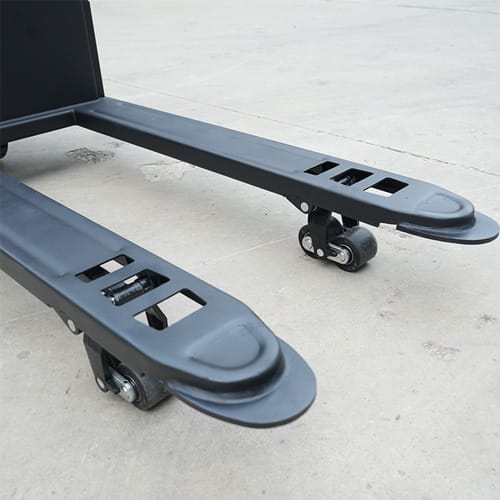

| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Height | 85 mm |
| Maximum Fork Height | 200 mm |
| Inner Width Between Forks | 230 / 365 mm |
| Outer Width Between Forks | 550 / 685 mm |
| Fork Length | 1,160 mm |
| Single Fork Width | 160 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,750 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,380 mm |
| Overall Height without Handle | 700 mm |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed — Laden/Unladen | 4 / 4.5 km/h |
| Gradeability — Laden/Unladen | 7% / 16% |
| Battery | 48V / 20A |
| Drive Motor Power | 1,500 W |
| Lifting Motor Power | 1,200 W |
| Overall Weight | 195 kg |
| Lifting Speed — Laden/Unladen | 2.2 / 3.3 cm/s |
Configure the Truck Around the Outdoor Route
The drive-wheel size and rubber construction are intended for outdoor transitions, but the truck still has an 85 mm minimum fork height and a 1,550 mm turning radius. Inspect joints, ramps, loose debris, potholes, drainage channels, and loading-area space before approving the route.
The listed 7% laden gradeability should be compared with the steepest measured gradient while carrying the actual load.

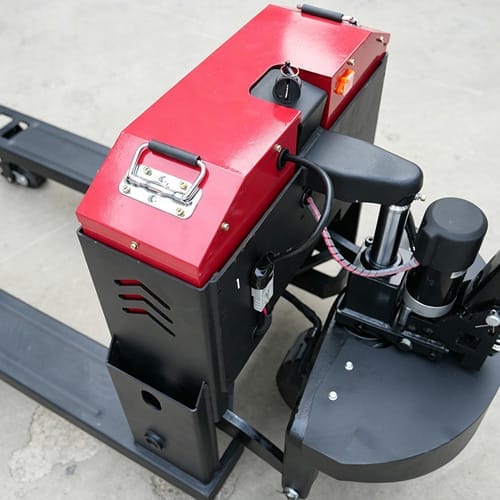

Removable Battery Charging for Distributed Work Areas
Where the truck cannot park beside a power outlet, the battery can be moved to a separate charging location. Confirm the battery capacity, charger input, spare-battery requirement, and handling method as one system before ordering.
Request a Quote for the CSHP-Y30
Send the pallet and load details, outdoor route condition, steepest gradient, daily travel distance, charging location, and destination country.
