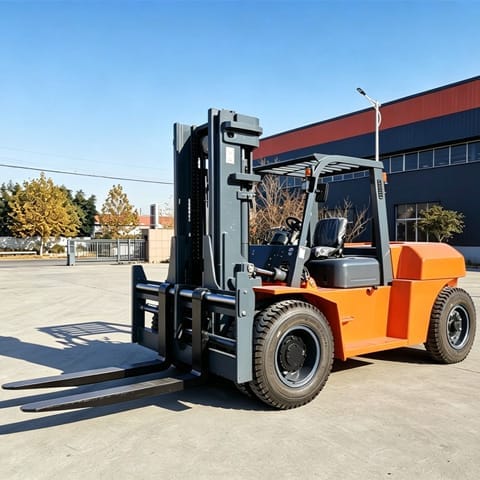

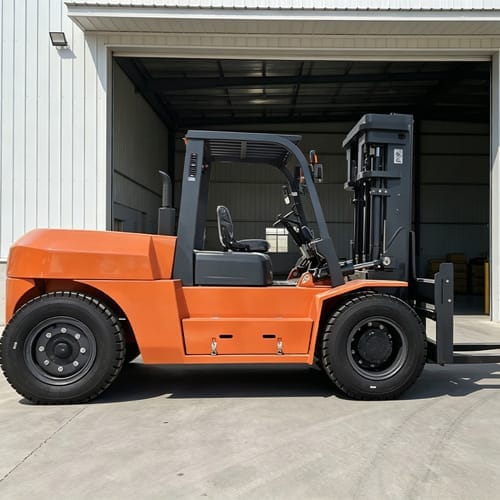

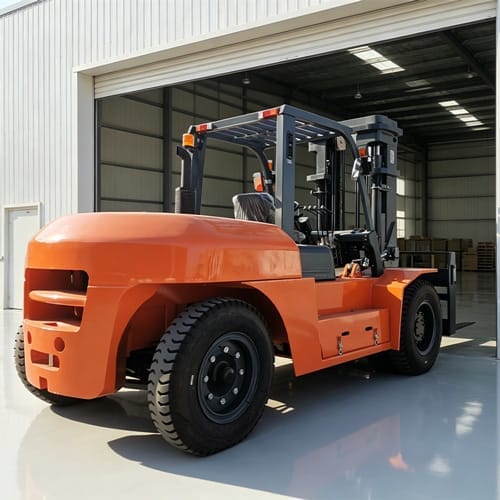

The CSTAR CSQD-100 10 Ton Diesel Forklift Truck is rated for 10,000 kg at a 600 mm load center with a standard lift height of 3,000 mm.
The truck has a service weight of 12,410 kg, a width of 2,245 mm and a CA6110 diesel engine.
CSQD-100 Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Capacity | Rated Capacity | 10,000 kg |
| Capacity | Load Center | 600 mm |
| Lifting | Lift Height | 3,000 mm |
| Lifting | Free Lift | 200 mm |
| Dimensions | Length with / without Forks | 5,497 / 4,277 mm |
| Dimensions | Width | 2,245 mm |
| Dimensions | Mast Lowered Height | 2,870 mm |
| Dimensions | Overhead Guard Height | 2,570 mm |
| Chassis | Wheelbase | 2,800 mm |
| Chassis | Ground Clearance | 250 mm |
| Maneuverability | Turning Radius | 4,150 mm |
| Maneuverability | Aisle Width | 5,310 mm |
| Lifting | Mast Tilt | 6° / 12° |
| Performance | Lift Speed | 350 / 330 mm/s |
| Performance | Travel Speed | 26 / 20 km/h |
| Performance | Gradeability | 15% |
| Weight | Service Weight | 12,410 kg |
| Tires | Tires | 4 Front / 2 Rear, 9.00-20NHS Pneumatic |
| Engine | Engine | CA6110 |
| Electrical | Battery | 2 × 12 V / 80 Ah |
| Fuel System | Fuel Tank | 152 L |
For 10 Ton Loads, Weight Alone Is Not Enough
The 10,000 kg rating applies at a 600 mm load center.
Machinery, long steel, timber and other oversized loads can move the center of
gravity farther forward. For these loads, provide the weight, dimensions and
lifting position rather than using the 10 ton rating alone.
When the CSQD-100 Is the Right Capacity Class
The CSQD-100 is the model to consider when regular loads are beyond the practical
working range of the smaller 7–8 ton class. Moving to 10 ton also means accepting
a larger chassis: the truck is 2,245 mm wide, weighs 12,410 kg before cargo and
requires a listed aisle width of 5,310 mm.
Common Ordering Questions
Does the 5,310 mm aisle width apply to every 10 ton load?
No. The listed aisle width describes the base truck configuration. Long loads,
wide loads or attachments can require more maneuvering space, so the actual load
dimensions should be checked against the site layout.
What site information should I provide for a CSQD-100 quotation?
Include the working surface, ramp or gradient conditions, available turning area,
load weight, load dimensions and required lift height. The truck itself weighs
12,410 kg before the load is added.
For 10 ton applications, send the load drawing or dimensions, weight,
lifting position, required lift height, site conditions and destination country.
