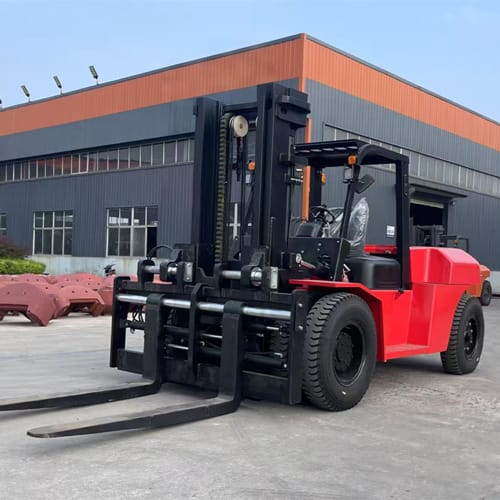

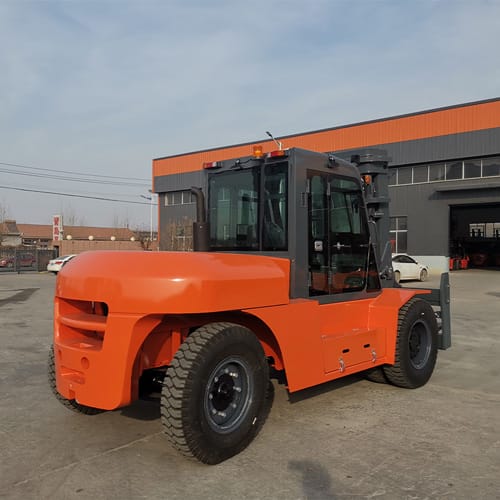

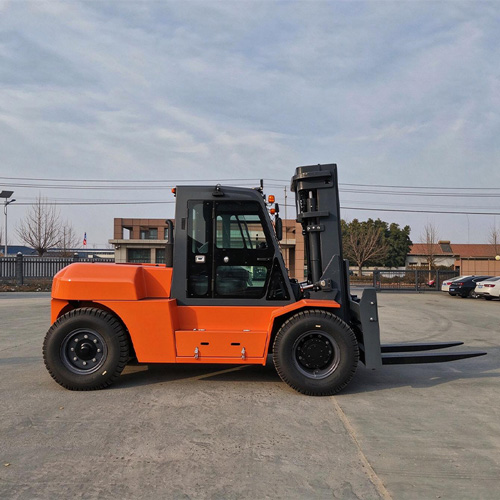

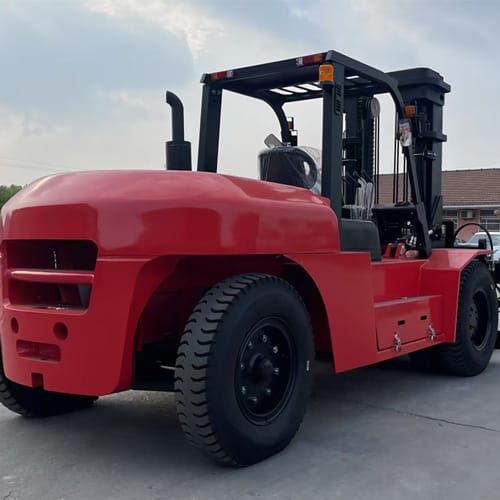

CSQD-120 12 Ton Diesel Forklift Truck

The CSTAR CSQD-120 12 Ton Diesel Forklift Truck is rated for 12,000 kg at a 600 mm load center with a listed maximum no-load lift height of 3,000 mm. The truck uses a seated driving position, pneumatic tires and a Xichai CA6110 Euro II engine.

For site planning, the CSQD-120 measures 2,245 mm wide, has a 4,400 mm minimum outer turning radius and a listed 5,580 mm minimum right-angle aisle width. These figures are especially important when checking access routes, loading areas and turning space for a 12 ton truck.

CSQD-120 Technical Specifications

12 Ton Capacity at a 600 mm Load Center

The CSQD-120 is rated for 12,000 kg at a 600 mm load center. The load-center figure is part of the capacity rating and should be considered together with the actual cargo dimensions and lifting position.

For an evenly distributed load positioned against the fork face, a load depth of 1,200 mm places its center approximately 600 mm forward. Long machinery, irregular loads or attachments can shift the center of gravity farther forward, so provide the load dimensions and lifting position when reviewing the required configuration.

Machine Dimensions and Site Access

The CSQD-120 measures 4,477 mm without forks and 5,697 mm with forks, with an overall width of 2,245 mm. The wheelbase is 3,000 mm.

For gates, loading zones and travel routes, check the complete truck-and-load envelope rather than machine width alone. The actual cargo can increase the space required at doorways and during turns.

Turning Radius and Right-Angle Aisle Width

The listed 4,400 mm minimum outer turning radius describes the truck’s turning geometry. The 5,580 mm minimum right-angle aisle width is a separate specification for right-angle handling.

For rack or warehouse planning, do not treat either figure as a universal clearance for every load. Pallet dimensions, fork-entry direction, load overhang and nearby obstructions can change the actual space required.

For more detail on turning radius and right-angle stacking space, see the

forklift aisle width guide
.

Mast Height and Doorway Clearance

The listed mast provides a 3,000 mm maximum no-load lifting height, 200 mm free lift and mast tilt of 5° forward / 10° backward.

For doorway access, compare both fixed heights. The mast height when not raised is 2,870 mm, while the overhead guard height is 2,570 mm. The mast is therefore the taller of these two listed components.

Xichai Engine, Tire Arrangement and Ground Clearance

The CSQD-120 uses a Xichai CA6110 Euro II engine with a listed 190 L fuel tank. The truck has four front tires and two rear tires, with 10.00-20NHS pneumatic tires at both ends.

Minimum ground clearance is listed as 250 mm. When reviewing an operating site, surface transitions, loading ramps and access routes should be considered together with the truck’s overall dimensions and load.

Loaded and Unloaded Performance

Maximum lifting speed is listed as 320 mm/s without load and 280 mm/s under full load. Maximum working speed is 26 km/h without load and 20 km/h under full load.

Full-load maximum gradeability is listed as 15%. When comparing the CSQD-120 with another 12 ton forklift, compare performance figures under the same loading condition rather than mixing loaded and unloaded values.

Machine Weight and Transport Planning

The CSQD-120 weighs 14,410 kg under the stated standard no-load condition. This is the listed machine weight and is separate from its 12,000 kg rated lifting capacity.

For shipment planning, confirm the final truck configuration, forks, attachments and any separately packed components. Where dock plates, ramps or raised floors are involved, request the relevant axle or wheel loads for the intended operating condition.
