The CSAF-20 2 ton electric forklift is a 2000kg model built around a defined 60V lead-acid battery configuration. Standard lifting height is 3m and chassis length is listed as 2450mm excluding the forks.
Travel and hydraulic lifting are both powered by 4000W AC motors, while the battery specification is five 70Ah maintenance-free lead-acid batteries.
CSAF-20 vs CSAE-20: The Main Difference Is Configuration
Both models are rated at 2000kg, but they should not be treated as identical 2 ton forklifts. The CSAF-20 lists a fixed 60V lead-acid setup with five 70Ah batteries and 4kW travel and hydraulic motors.
The CSAE-20, by comparison, lists its voltage and battery configuration as customizable and uses 7.5kW travel and hydraulic motors. Buyers who already know they want the CSAF-20 lead-acid configuration can quote against a more defined electrical setup, while projects requiring a different battery specification should discuss the CSAE-20 configuration separately.
The published length figures for the two models are not measured in exactly the same way: CSAF-20 length excludes the forks, while CSAE-20 is listed as total length. Those figures should not be used as a direct dimensional comparison without confirming the same measurement basis.
CSAF-20 Specifications
| Category | Parameter | Specification |
|---|---|---|
| Technical Parameters | Rated Lifting Weight | 2000kg |
| Length (excluding forks) | 2450mm | |
| Width | 1200mm | |
| Height | 2200mm | |
| Vehicle Weight | 2700kg | |
| Lifting Height | 3m | |
| Body Material | New Stamped Shell | |
| Electrical System | Travel Motor | AC 4000W Travel Motor |
| Voltage | 60V | |
| Controller | Anti-slope High-power Controller | |
| Battery | 5 x 70Ah Maintenance-free Lead-acid Batteries | |
| Lights & Signals | Headlight, Left/Right Turn Signal, Brake Light, Driving Light, Instrument, Electric Horn, etc. | |
| Chassis System | Drive Axle | Cast Steel Suspended 220 Axle |
| Tires | Front: 650-10, Rear: 500-8, Grade C Solid Tires | |
| Steering Axle | Reinforced Heavy-duty Forklift-specific Rear Axle | |
| Braking System | Hand Brake, Hydraulic Brake | |
| Other Configurations | Lifting Cylinder | Enhanced Sealed Dual Cylinders |
| Fork Length | 1220mm Ultra-thick Forged Forks | |
| Hydraulic Lifting Motor | AC 4000W Hydraulic Motor | |

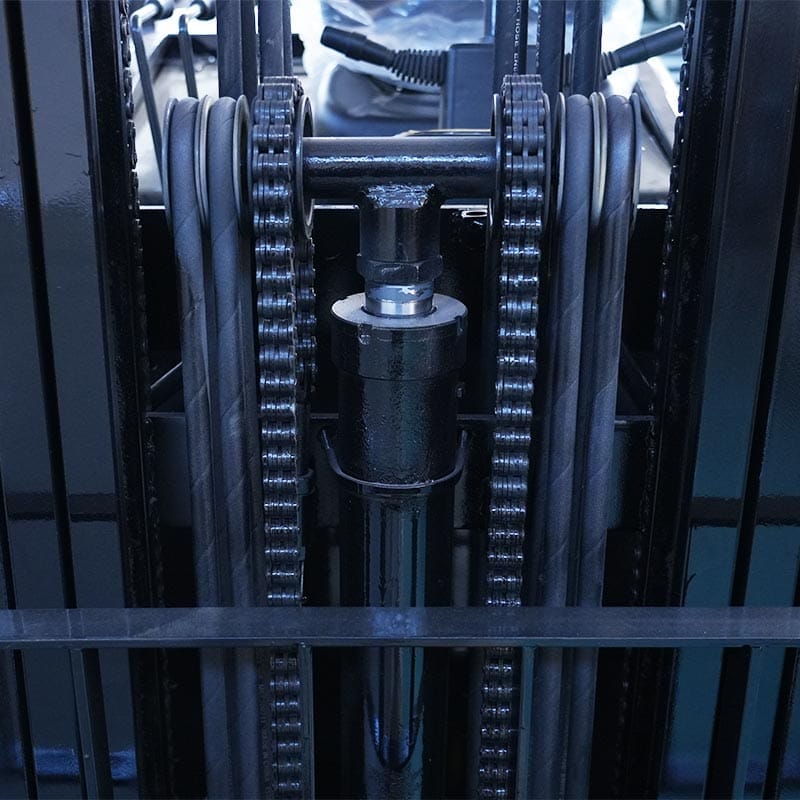

| Mast Material | C-channel Steel Mast | |
| Steering Mode | Hydraulic Power Steering | |
| Turning Radius | 90° In-place Turning | |
| Charging Time | 4-6 hours | |
| Continuous Working Time | 6-8 hours | |
| Gradeability | 15° |
Note: Body dimensions, lifting height and other configurations can be customized according to customer requirements.
This table is for reference only, subject to the actual configuration.
Tell us whether you need the listed lead-acid configuration or another battery setup, together with lift height and destination.
