The CSTAR CSDE-15 1.5 ton electric forklift combines a 1,500 kg rated capacity at a 500 mm load center with a 72V electrical system. Its 4 kW drive motor and 4 kW lifting motor are paired with a 100Ah battery configuration.
The truck provides a 3,000 mm lift height, hydraulic power steering, solid tires, and a cast-steel heavy-duty drive axle. Selection should focus on whether its charging schedule and complete operating envelope fit the intended warehouse route.
Plan the Duty Cycle Around the 72V Battery System
The six-battery system is rated at 72V and 100Ah, with an 8–10 hour charging time from the listed 220V charger input. Before ordering, map the number of daily travel and lifting cycles against the available charging window rather than estimating suitability from motor power alone.
Route planning must use the complete 3,370 mm length with forks, 1,150 mm width, and 1,550 mm turning radius. The 12 km/h laden travel speed is only useful where aisles, intersections, pedestrian controls, and stopping space allow the truck to operate safely.
Vertical clearance requires two separate checks: the forks lift to 3,000 mm, while the mast lowers to 2,100 mm and the maximum working height reaches 3,750 mm. Compare these figures with the lowest doorway, ceiling obstructions, and highest required load position.
CSDE-15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSDE-15 |
| Rated Load Capacity | 1,500 kg |
| Overall Length (Without Forks) | 2,300 mm |
| Overall Length (With Forks) | 3,370 mm |
| Overall Width | 1,150 mm |
| Mast Lowered Height | 2,100 mm |
| Overhead Guard Height | 2,080 mm |
| Maximum Working Height | 3,750 mm |
| Wheelbase | 1,580 mm |
| Minimum Ground Clearance — Mast Bottom | 100 mm (empty/laden) |
| Minimum Ground Clearance — Chassis Center | 130 mm (empty/laden) |
| Mast Type | 120 mm C-section |
| Maximum Lift Height (Unloaded) | 3,000 mm |
| Mast Tilt Angle (Front/Rear) | 5° / 13° |
| Overall Weight (Standard Unloaded) | 2,650 kg |
| Maximum Lifting Speed (Unloaded, Adjustable) | 120 mm/s |
| Maximum Lifting Speed (Laden, Adjustable) | 140 mm/s |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed (Unloaded, Adjustable) | 14 km/h |
| Maximum Travel Speed (Laden, Adjustable) | 12 km/h |
| Maximum Gradeability (Laden) | 15% |
| Maximum Gradeability (Unloaded) | 20% |
| Load Center Distance | 500 mm |
| Front Tire | 650-10 |
| Rear Tire | 500-8 |
| Lifting Motor Power | 4 kW AC |
| Drive Motor Power | 4 kW AC |

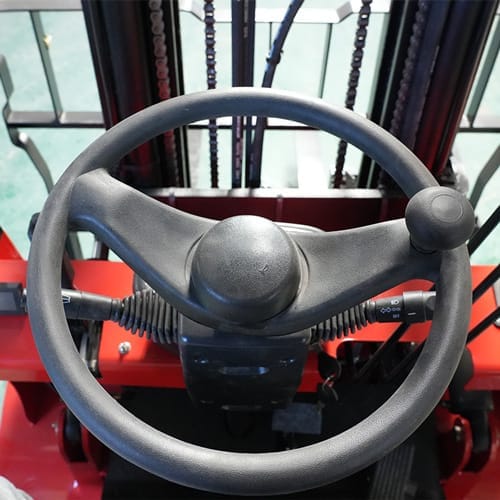

| Steering Type | Hydraulic power steering |
| Charger Input Voltage | 220V |
| Charging Time | 8–10 hours |
| Battery Capacity | 100Ah |
| Rated Voltage | 72V |
| Battery Brand | Chaowei |
| Number of Batteries | 6 |
| Drive Axle | 220-100 cast-steel heavy-duty drive axle |
| Steering Axle | 920-220 cast-steel suspension integrated heavy-duty steering axle |

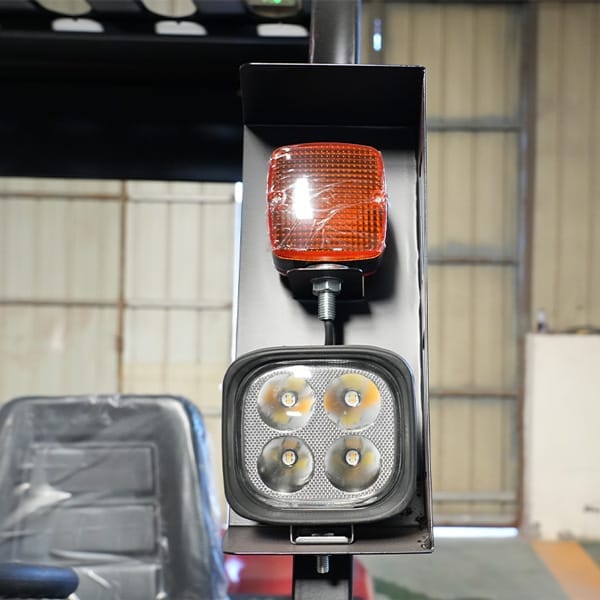

| Lighting System | LED |
| Wheel Type | Solid tires |
| Body Color | Customizable |
Request a Quote for the CSDE-15
Share your load, pallet dimensions, lifting height, aisle width, operating hours, gradients, and charging requirements. We will help determine whether the CSDE-15 or another 1.5-ton configuration is appropriate.
