The CSDS-15 1.5 ton electric forklift is designed for warehouse, workshop, and production handling with loads of up to 1,500 kg at a 500 mm load center. Its compact dimensions and 1,550 mm minimum turning radius make it suitable for operations where maneuvering space must be planned carefully.
The CSDS-15 uses 3 kW AC drive and lifting motors, a 60V 70Ah battery system, and a 3,000 mm unloaded lifting height. Overall length is 2,200 mm without forks and 3,270 mm with forks.
How the CSDS-15 Compares with Other 1.5 Ton Models
The CSDS-15 and CSDF-15 share the same rated capacity, motor output, battery specification, travel speed, and turning radius. The CSDS-15 is 200 mm shorter, 50 mm narrower, and 100 kg lighter, while its listed laden lifting speed is 150 mm/s compared with 140 mm/s for the CSDF-15.
The CSDE-15 keeps the same 1,150 mm width but adds 1 kW to both drive and lifting motor output. It also moves from a 60V 70Ah five-battery configuration to a 72V 100Ah six-battery system and uses a cast-steel heavy-duty drive axle. The tradeoff is 250 kg more unloaded weight and 100 mm more chassis length than the CSDS-15.
Choose the CSDS-15 when the compact 1.5-ton configuration meets the required duty cycle. Confirm load center, pallet dimensions, lifting height, aisle geometry, floor capacity, grade, and charging availability before ordering.
CSDS-15 Specifications
| Parameter | Specification |
|---|---|
| Model | CSDS-15 |
| Rated Load Capacity | 1,500 kg |
| Overall Length (Without Forks) | 2,200 mm |
| Overall Length (With Forks) | 3,270 mm |
| Overall Width | 1,150 mm |
| Mast Lowered Height | 2,100 mm |
| Overhead Guard Height | 2,080 mm |
| Maximum Working Height | 3,750 mm |
| Wheelbase | 1,580 mm |
| Minimum Ground Clearance — Mast Bottom | 100 mm (empty/laden) |
| Minimum Ground Clearance — Chassis Center | 130 mm (empty/laden) |

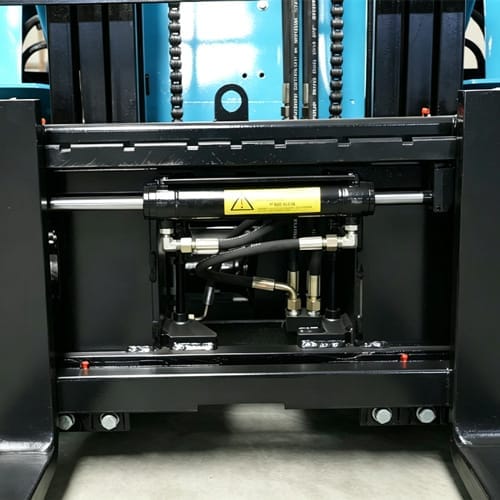

| Mast Type | 120 mm C-section |
| Maximum Lift Height (Unloaded) | 3,000 mm |
| Mast Tilt Angle (Front/Rear) | 5° / 13° |
| Overall Weight (Standard Unloaded) | 2,400 kg |
| Maximum Lifting Speed (Unloaded, Adjustable) | 120 mm/s |
| Maximum Lifting Speed (Laden, Adjustable) | 150 mm/s |
| Minimum Turning Radius | 1,550 mm |
| Maximum Travel Speed (Unloaded, Adjustable) | 14 km/h |
| Maximum Travel Speed (Laden, Adjustable) | 12 km/h |
| Maximum Gradeability (Laden) | 15% |
| Maximum Gradeability (Unloaded) | 20% |
| Load Center Distance | 500 mm |

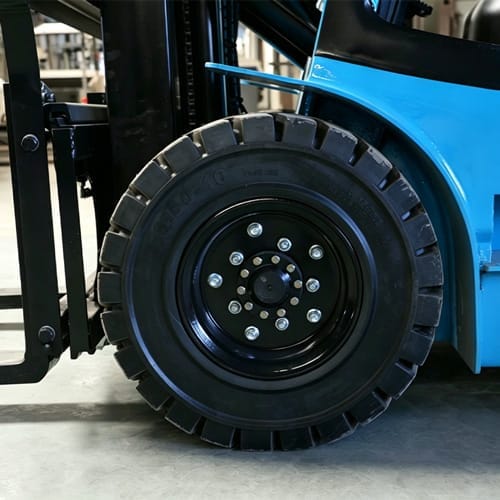

| Front Tire | 650-10 |
| Rear Tire | 500-8 |
| Lifting Motor Power | 3 kW AC |
| Drive Motor Power | 3 kW AC |

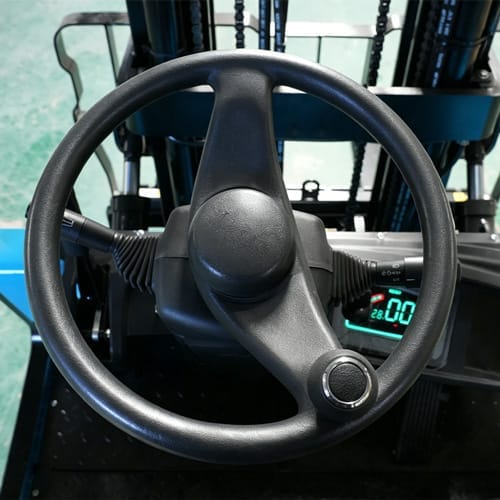

| Steering Type | Hydraulic power steering |
| Charger Input Voltage | 220V |
| Charging Time | 8–10 hours |
| Battery Capacity | 70Ah |
| Rated Voltage | 60V |
| Battery Brand | Jinba |
| Number of Batteries | 5 |
| Drive Axle | 220-100 sheet-metal drive axle |
| Steering Axle | 920-160 cast-steel suspension integrated heavy-duty steering axle |
| Lighting System | LED |
| Wheel Type | Solid tires |
| Body Color | Customizable |
