CSGL-S480

CSGL-S480

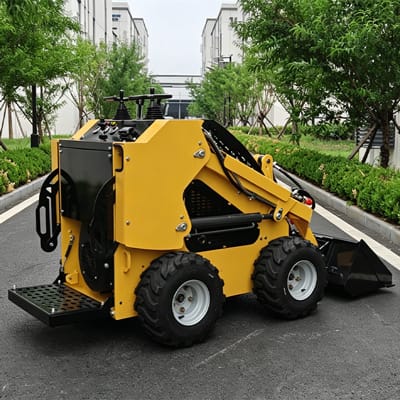

CSGL-S480 - Image 2

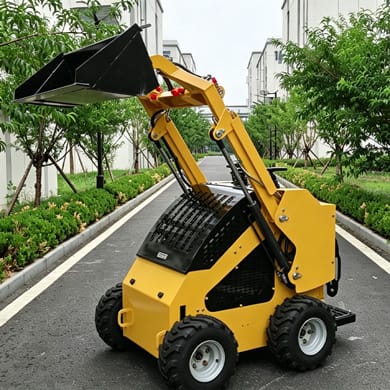

CSGL-S480 - Image 3

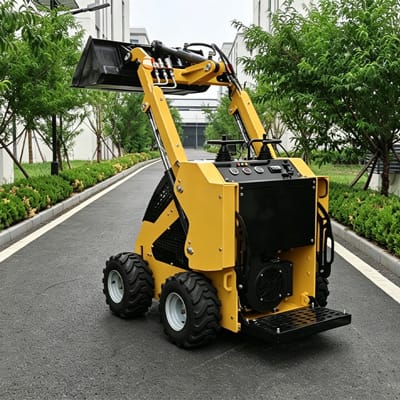

CSGL-S480 - Image 4

CSGL-S480

Rated loading weight  ：1240kg

Bucket capacity  ： 0.1m³

Engine  ：3TNV80/D1105

Dimension  ：2194*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Get a quote

CSGL-S480

Rated loading weight  ：1240kg

Bucket capacity  ： 0.1m³

Engine  ：3TNV80/D1105

Dimension  ：2194*1050*1300mm

Mini Skid Steer Loaders are compact, versatile, and easy to maneuver in limited spaces. Compatible with multiple attachments, they can perform digging, lifting, and landscaping tasks, offering efficiency and flexibility for construction and agriculture.

Contact Us
Get a quote

Product Categories

Get In Touch

官网询盘

CSGL-S480

ModelCSGL-S480
Basic performance parameters　
Operating weight1240kg
Bucket capacity0.1m³
Climbing ability25°
Maximum breakout force4.5KN
Rated load350kg
Maximum load450kg
Travel speed0-6km/h
Vehicle width1110mm
Rated pressure16Mpa
Bucket width1050mm
Max loading height1680mm
Max dumping height1370mm
Max operating height2290mm
Height to bucket pin1835mm
Max height bucket dump angle63°
Min height1300mm
Departure angle18°
Ground clearance125mm
Dumping distance261mm
Wheelbase760mm
Dimensions　
Overall dimensions2194*1050*1300mm
Length including bucket2194mm
Length excluding bucket1770mm
Tire model18*8.5-8
Engine　
BrandYanmar/Kubota
Model3TNV80/D1105
Rated power15.2(17.8)/17.1kw
Cylinder3
Intake methodNaturally aspirated
Emission standardEPA/ERUO5
Fuel tank capacity13L

Attachments & Parts

Brush Cutter
Brush Cutter
Log Grapple
Log Grapple
Snow Blower
Snow Blower
Mixing Bucket
Mixing Bucket
Land Leveler
Land Leveler
Straight Dig
Straight Dig
Land Reclamation Machine
Land Reclamation Machine
Soil Conditioner
Soil Conditioner
Rotary Tiller
Rotary Tiller
Road Roller
Road Roller
Single Ripper
Single Ripper
Wood Splitter
Wood Splitter
Road Sweeper
Road Sweeper

our Advantages

Customization Supported

Logo, Color, Engine, Accessories, etc. We can provide you with exclusive customized services and produce the products you want according to your requirements, including but not limited to Logo customization, color customization, engine customization and accessories customization.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

Widened Pedals More Comfortable and Safer

The widened and thickened pedal increases the operator's standing stability, especially when the equipment encounters bumps, vibrations, etc. during driving or operation, which can reduce the risk of the operator slipping and ensuring the operator's safety.

One-Stop Service

Delivery to your door, convenient and fast. The establishment of multiple overseas warehouses (Europe and North America) allows you to enjoy door-to-door delivery service without leaving your home, which is convenient, fast and efficient.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

After-sales Service Team：24/7 Online One-to-One Service

Our enthusiastic and professional after-sales team is available 24/7 to provide dedicated one-to-one support and resolve your concerns promptly.

Application Industries

Cstar Machinery is a professional manufacturer of Mini Skid Steer Loader. We have comprehensive certifications, a dedicated after-sales team, and warehouses all over the world,stocking our equipment. We are looking for partners around the world to develop and progress together.
Cstar Mini Skid Steer Loader are easy to operate, offer excellent quality, and are available at competitive prices, making them an excellent choice for personal use, team use, or distribution.
